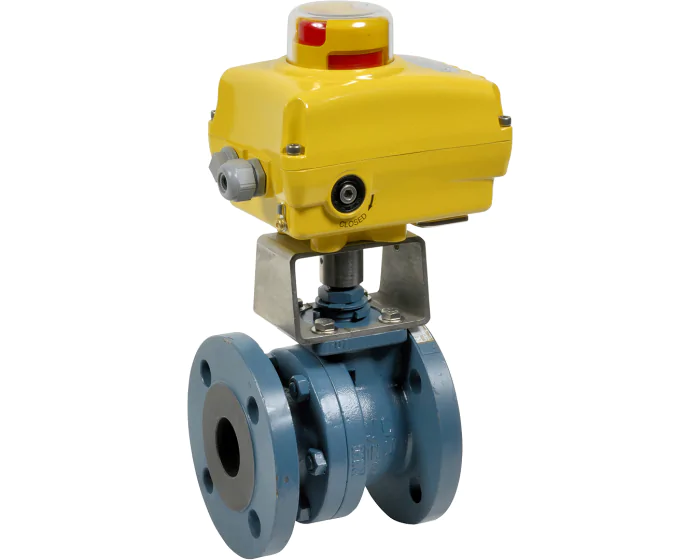

The JC 540AIT ball valve has an A216 WCB carbon steel body, stainless steel ball and PTFE seats. Full bore. SA/NA electric actuator. PS: 40 bar, TS: 230°C. Flanges PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN65 - 2''1/2 |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 170.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 25 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |

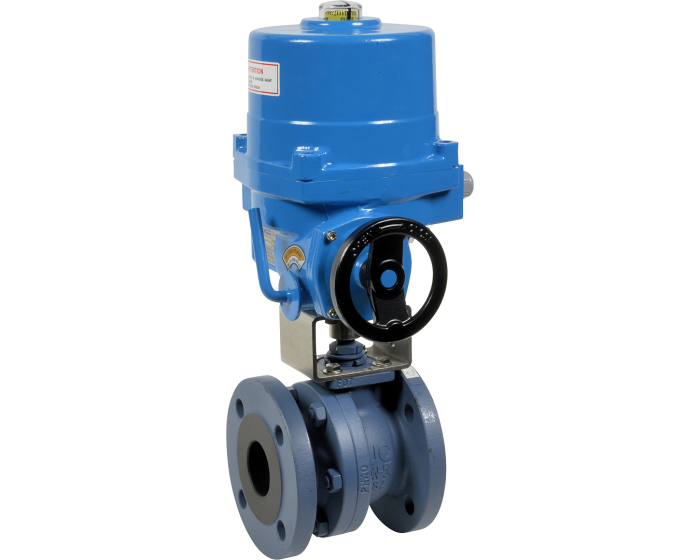

| Electric actuator type | NA 09 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Flanged PN16 NA 09 | 516AIT065023120 | S1004513 |
€1,453.37
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Flanged PN16 NA 15 | 516AIT080023130 | S1004514 |
€1,777.04
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Flanged PN16 NA 28 | 516AIT100023150 | S1004515 |
€2,236.21
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN200 - 8'' Flanged PN16 NA 150 | 516AIT200023210 | S1004518 |
€6,227.61
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Flanged PN40 SA 03 | 540AIT015023000 | S1004519 |
€529.54
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Flanged PN40 SA 03 | 540AIT020023000 | S1004520 |
€569.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Flanged PN40 SA 03 | 540AIT025023000 | S1004521 |
€583.44
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Flanged PN40 SA 05 | 540AIT032023010 | S1004522 |
€831.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Flanged PN40 SA 05 | 540AIT040023010 | S1004523 |
€846.51
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Flanged PN40 NA 09 | 540AIT050023120 | S1004524 |
€1,310.77
(excl. btw)
|
add to cart |
